Pin Type Ceramic Insulators
0102030405

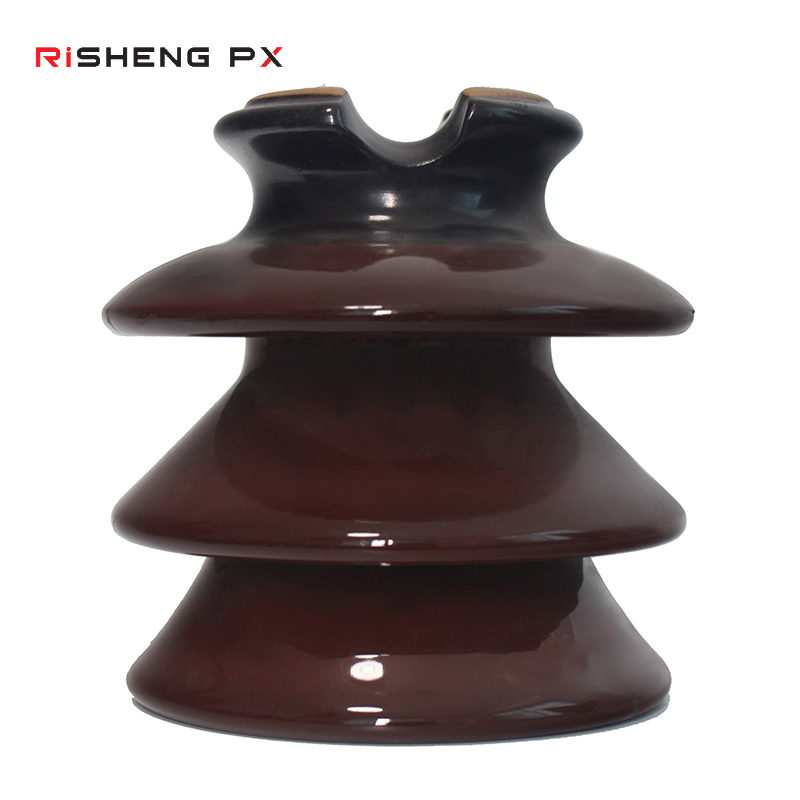

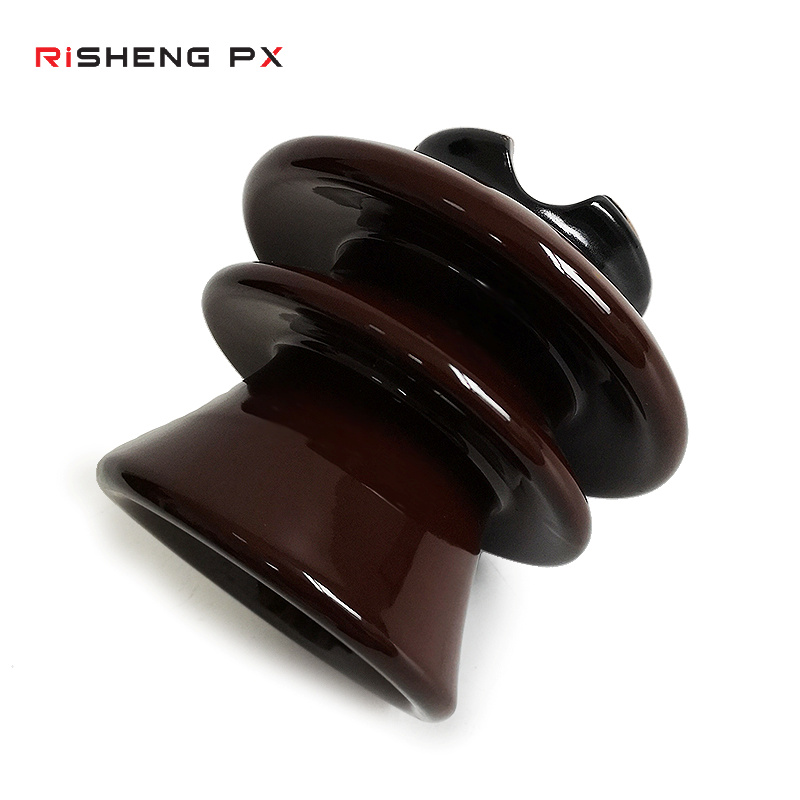

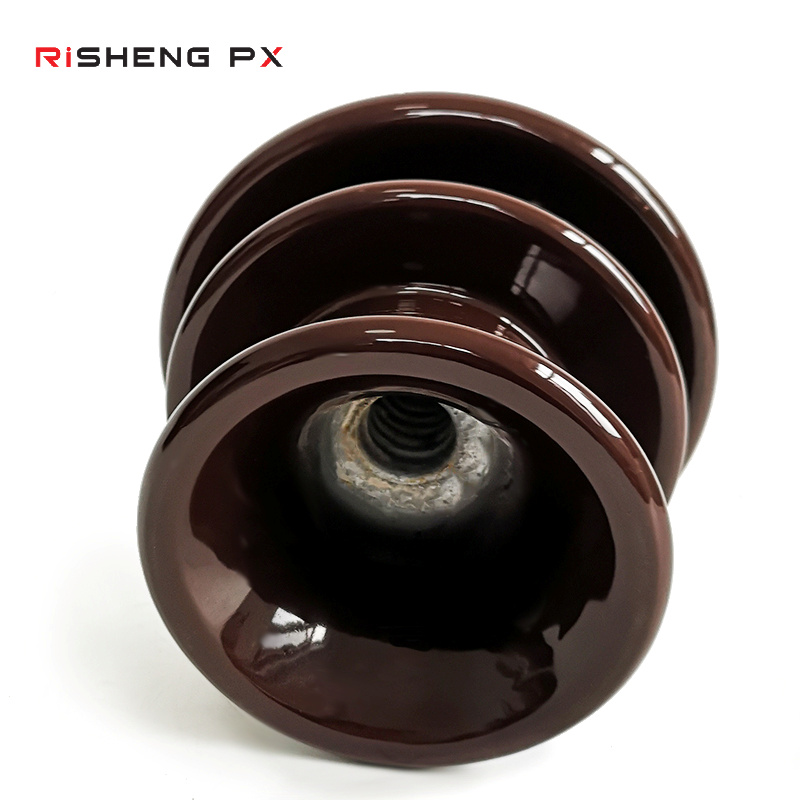

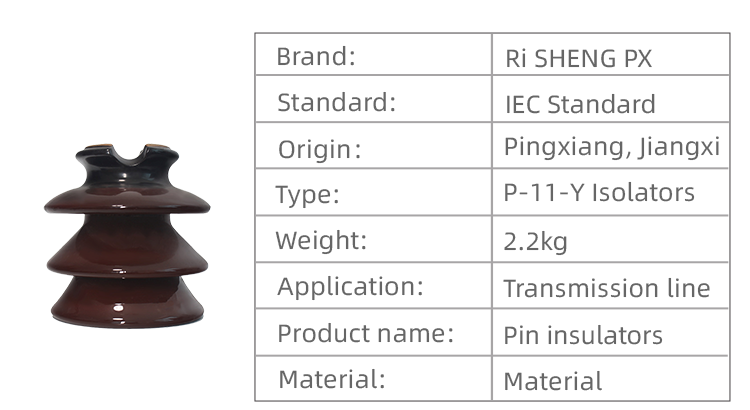

P-11-Y Isolator
| Pin-type porcelain insulators | ||
| type | P-11-Y | |

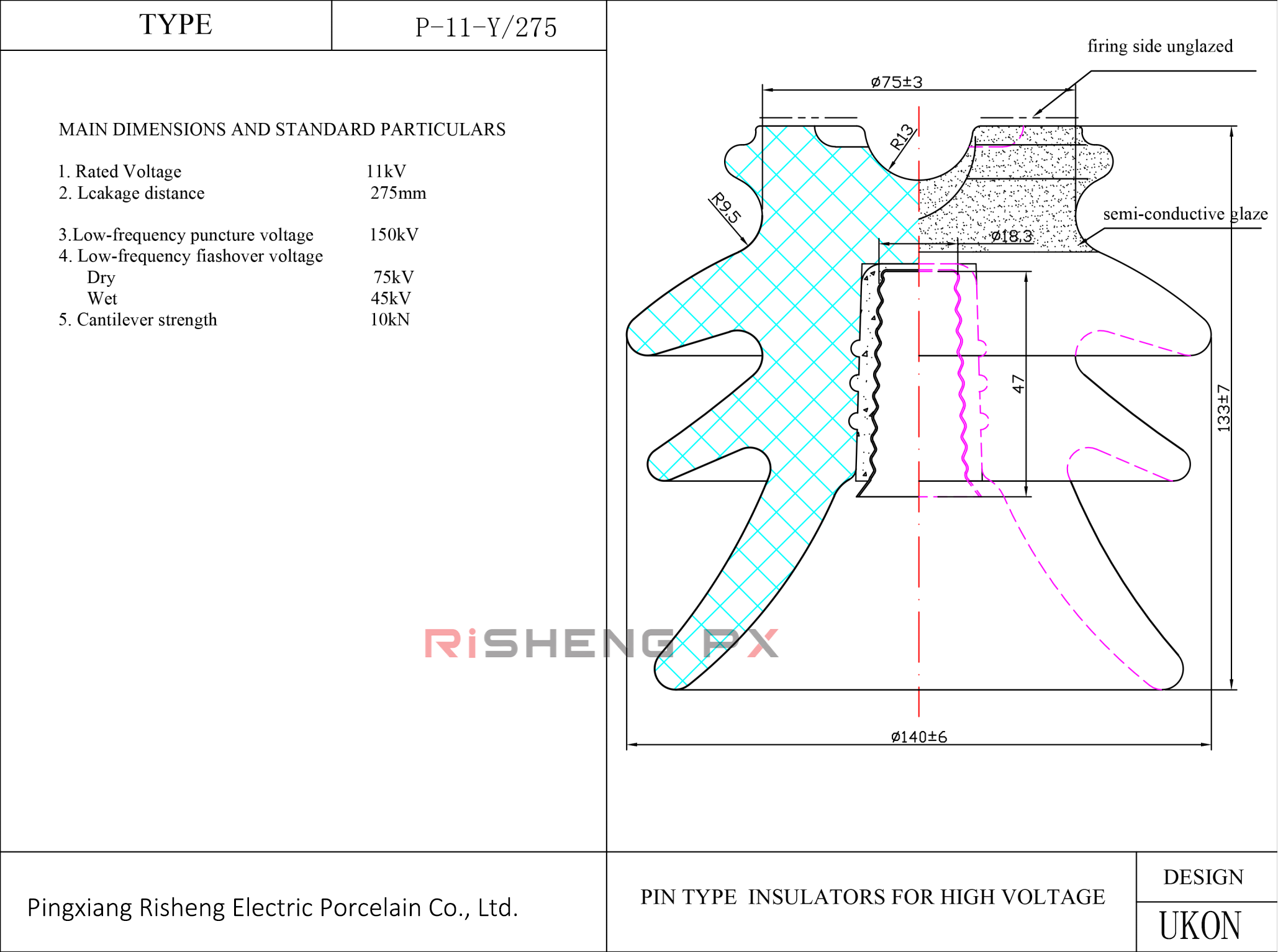

| Dimensions | ||
| Diameter | mm | 135 |
| Height | mm | 140 |
| Total creepage distance | mm | 275 |
| Protected creepage distance | mm | 102 |

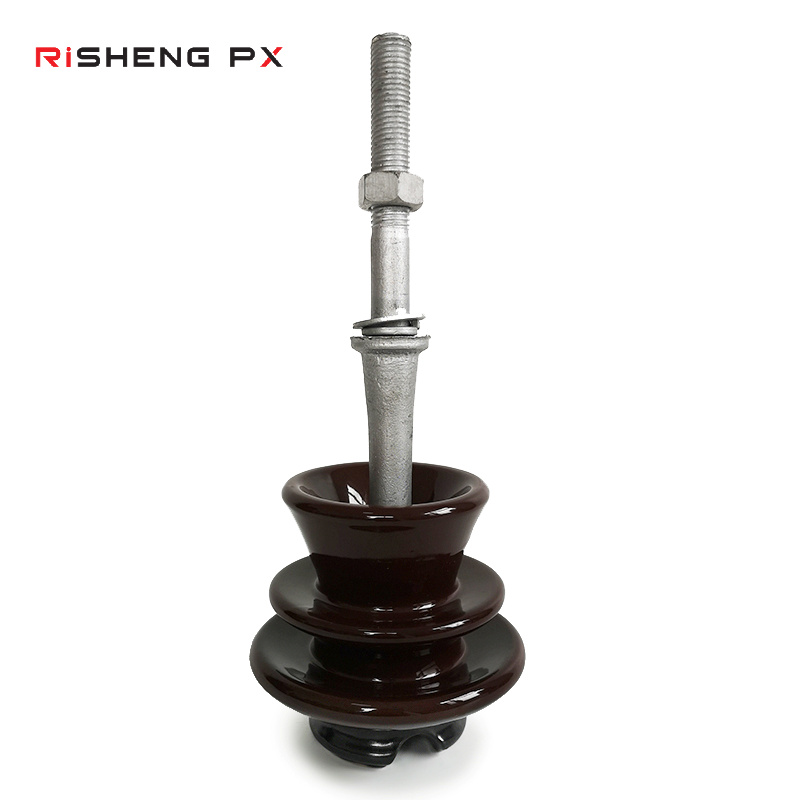

| Recommended pin height | mm | 152 |
| Mechanical Values | ||
| Cantilever strength | kn | 11 |
| Electrical Values | ||
| Type application voltage | kv | 11 |
| Power frequency dry flashover voltage | kv | 75 |
| Power frequency wet flashover voltage | kv | 45 |
| 50% impulse flashover voltage,positive | kv | 115 |
| 50% impulse flashover voltage,negative | kv | 150 |
| Power frequency puncture voltage | kv | 150 |
| Radio Influence Voltage Data | ||
| Test voltage RMS to ground | kv | 15 |
| Maximum RIV at 1000kHz | μv | 100 |
| Packing and Shipping Data | ||
| Net weight, approximate | kg | 1.8 |
