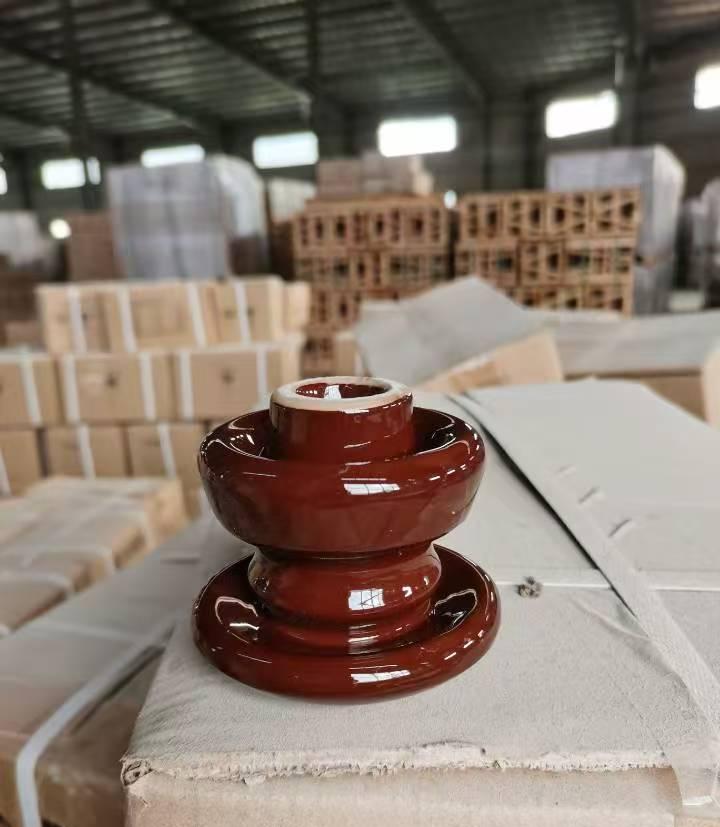

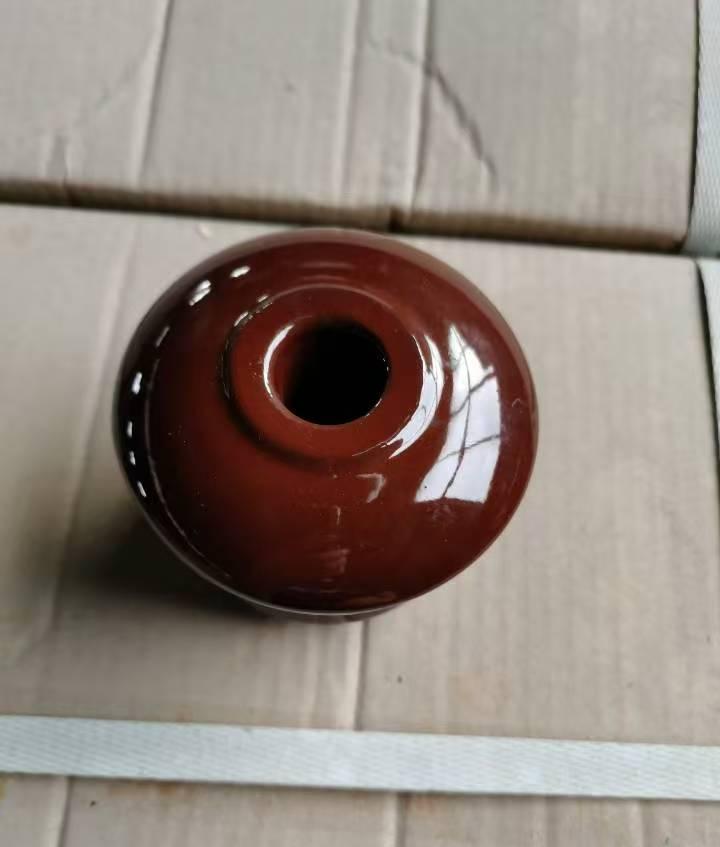

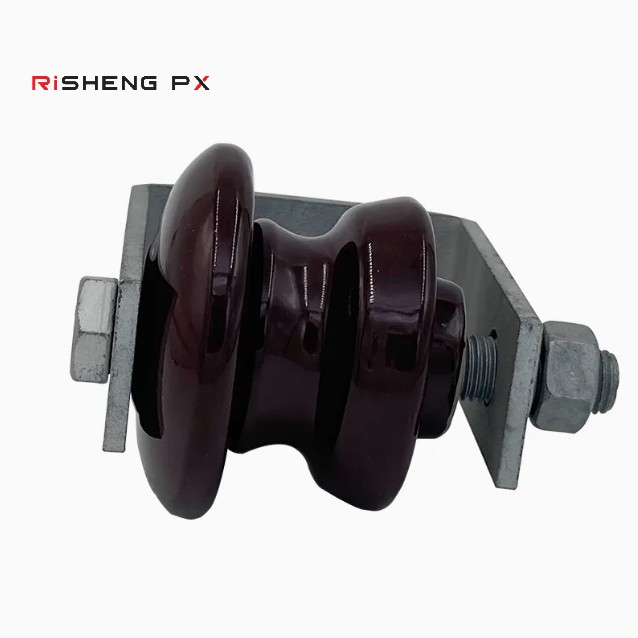

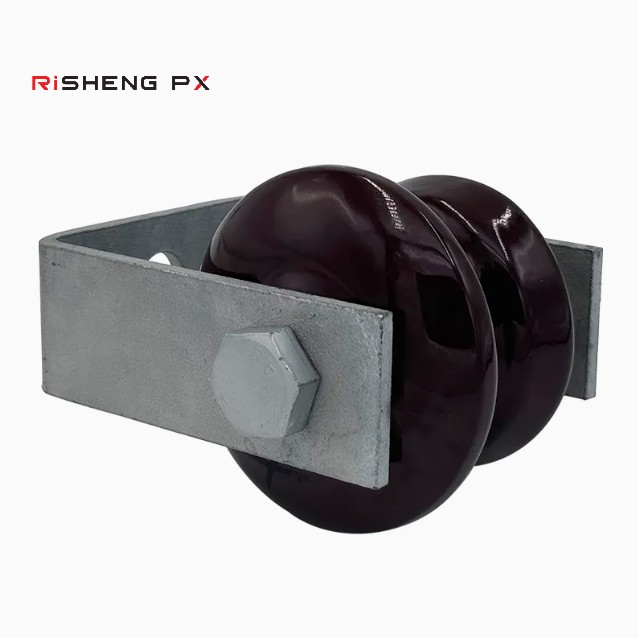

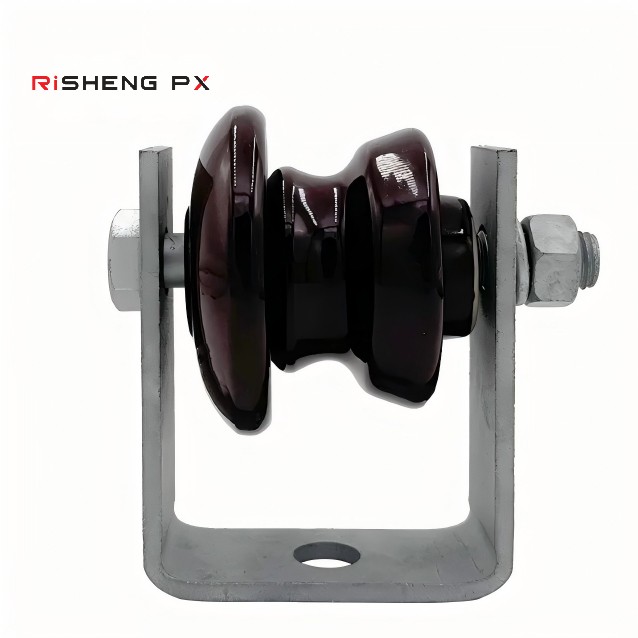

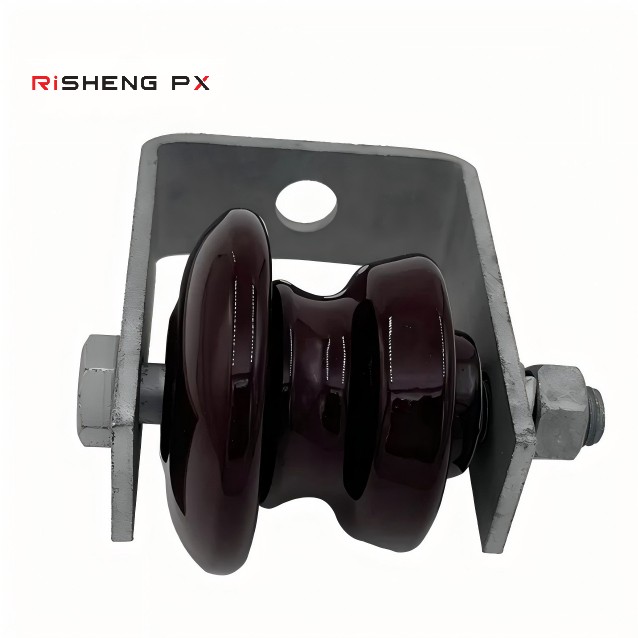

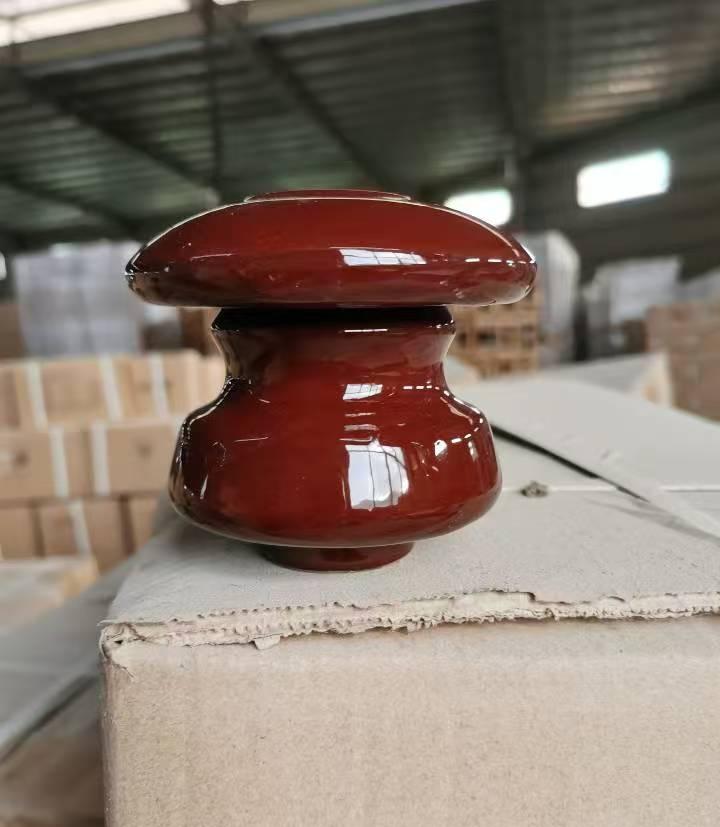

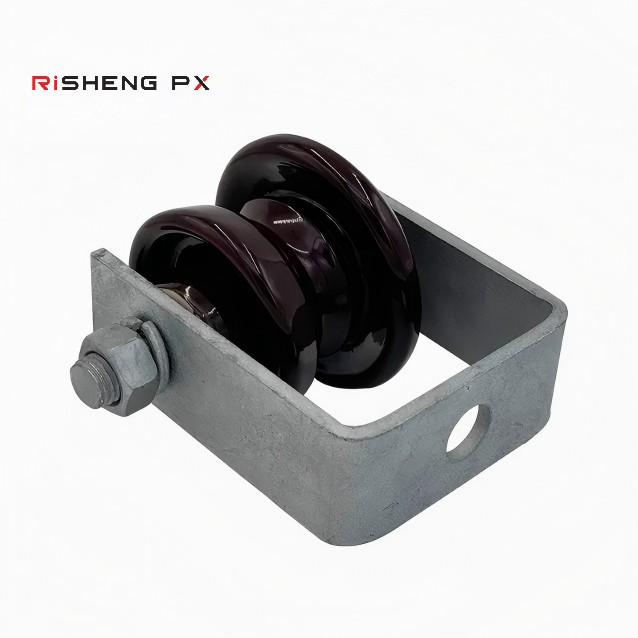

ED-2B 0.4KV Low Voltage Shackle Insulators With D Iron

Origin: Jiangxi, China
Brand Name: Risheng PX
Model: ED-2B  Low Voltage Insulators
Material: Porcelain
Application: High Voltage Power Transmission
Rated Voltage:0.4KV
Color: Brown
    • 简介: 20kg
    • 产品分类: Interior wall
    • 产品类型: Finish
    • 关键词: Matt
    • 产品链接: No
    Contact us
    Product Details

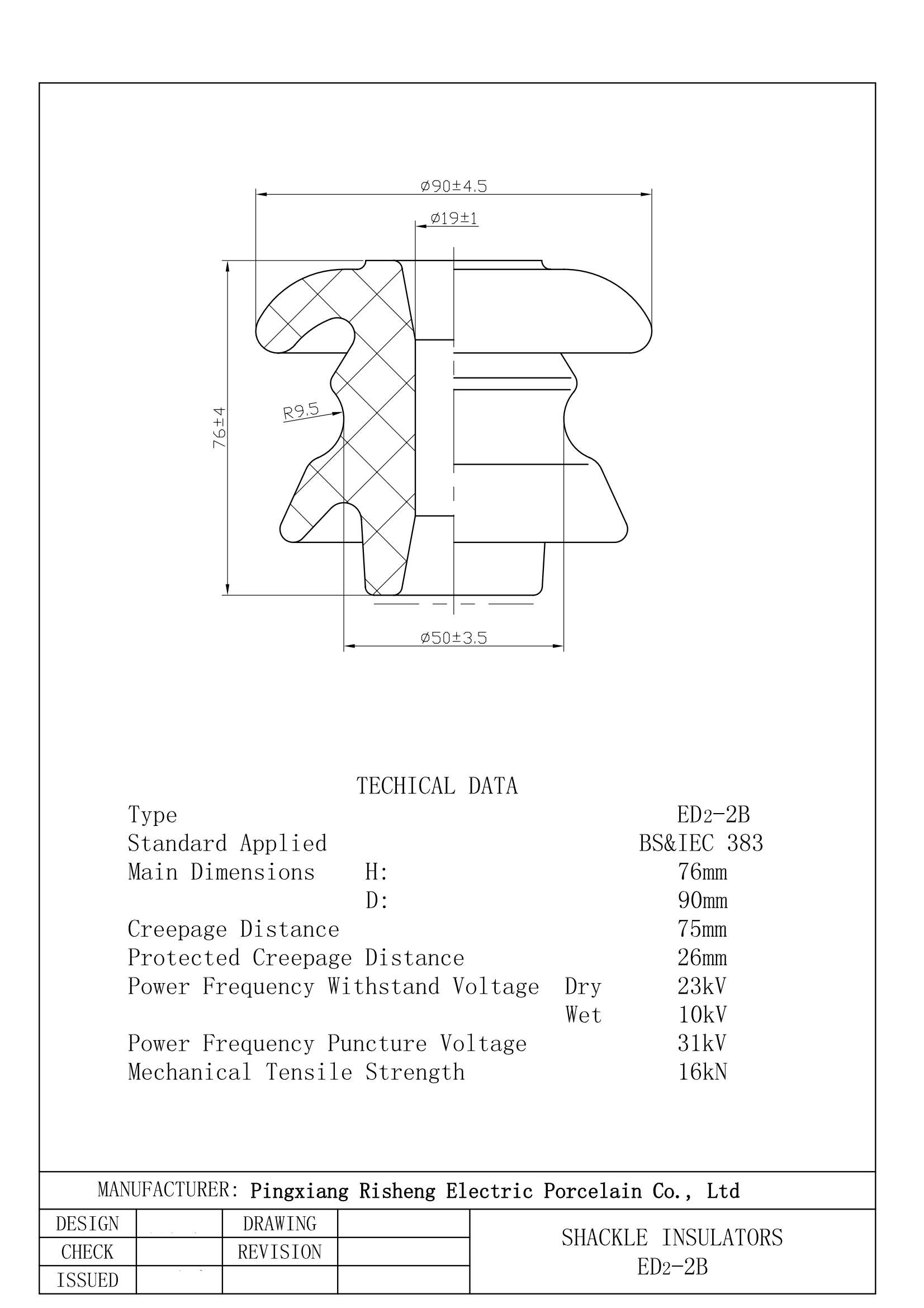

    Shackle insulators
    Type   ED-1 ED-2 ED-2B ED-2C ED-3 ED-4
    Dimensions
    Leakage distance mm 70 64 64 68 54 51
    Mechanical Values
    Transverse Strength kn 13.6 11.4 11.4 11.4 9.1 9.1
    Electrical Values
    Low frequency dry flashover voltage kv 30 25 25 25 18 15
    Low frequency wet flashover voltage kv 17 13 13 13 10 8
    Packing and Shipping Data
    Net weight,approximate kg 0.60  0.45  0.50  0.50  0.25  0.20
