High Voltage Transformer Bushing
01

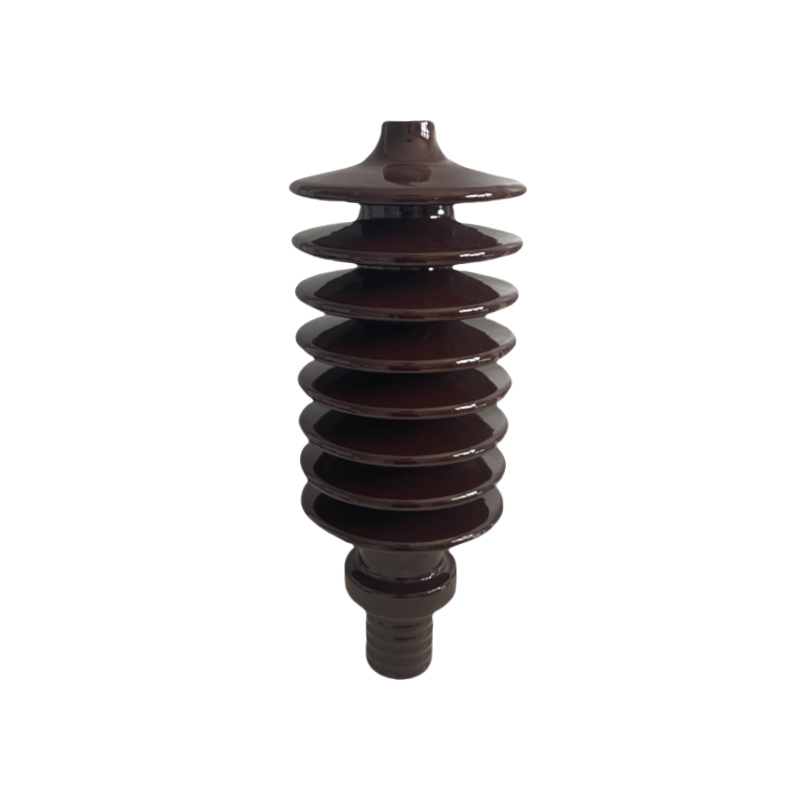

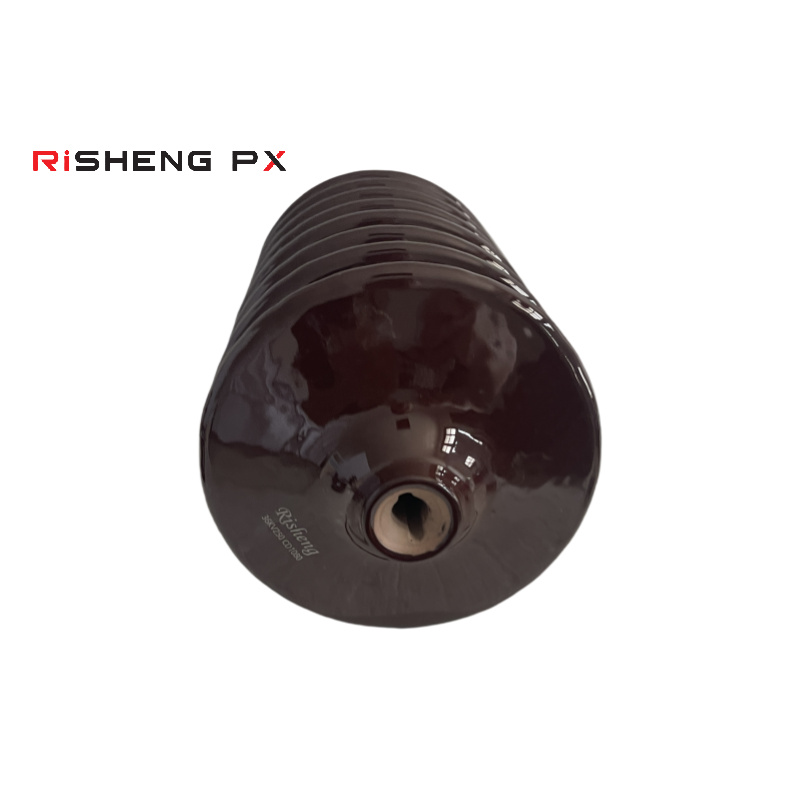

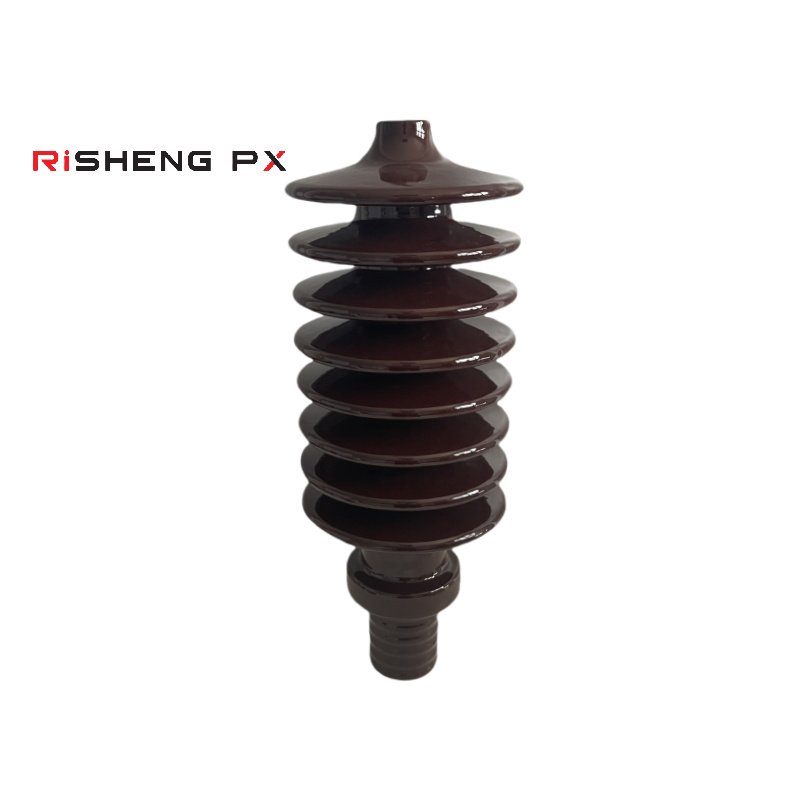

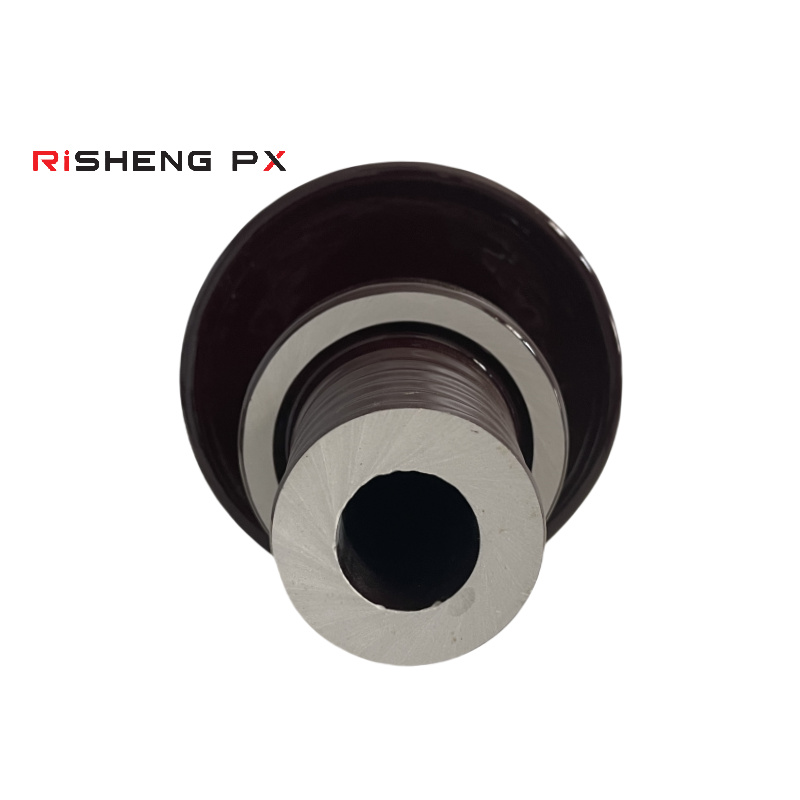

DIN 36KV250 Transformer Bushing Insulators CD1080
Video
size
H=550mm
D=192mm
Rated Voltage: 36KV
Rated Current: 250A
Creepage Distance: Min 1080mm
Power Frequency Withstand Voltage Dry: 80KV
Lighting Impulse Withstand Voltage: 170KV
product description
This is an outdoor transformer bushing insulator designed for use on oil-filled distribution or small power transformers operating in electrical systems with a nominal voltage up to 30kV or 33kV (maximum 36kV). It allows a conductor carrying up to 250A to pass safely through the grounded transformer tank wall while providing robust electrical insulation.
Material
Typically manufactured from high-quality electrical porcelain (usually brown glazed)
Construction
It features a central conductor, the main insulating body with weather sheds (skirts) designed to maximize the creepage distance and disrupt water flow, a mounting flange for secure attachment and grounding to the transformer tank, and terminals for connecting the internal transformer winding lead and the external power line/cable.
Application
Suitable for outdoor substations or pole-mounted transformers where environmental factors like rain, humidity, and pollution are present. The specified 990mm creepage distance indicates it's designed for environments requiring enhanced insulation integrity compared to bushings with shorter creepage distances.
